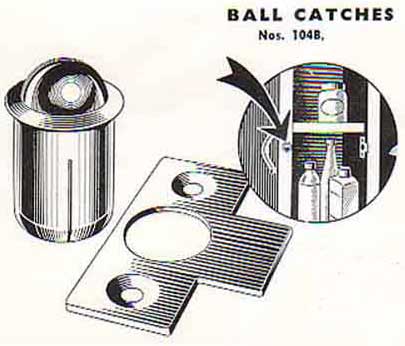

C104 BALL CATCHES IN 5 SIZES

Usually mounted on the edge of a cupboard door
or used in a variety of different ways.

This ball catch supplied in 6 different sizes is supplied with a solid polished steel revolving ball, which lends a smoother action in opening and closing. This unit is fitted into an embossed brass ( or steel ) casing.
No glue or screws are needed as the catch is made with a split case which contracts in diameter when forced into woodwork or steel etc
and thus maintains constant grip in the hole.
It sits flush to the face because of the thin rim.

The measurement is always the outer diameter of the casing
while the top shoulder lip will be more.

FOR OLD STYLE OILERS - - - CLICK
having some similarities in design to ball catches.

6mm

ZINC PLATED
STEEL BALL CATCH

CODE - - 104-6S - - $ 3.75

ZINC PLATED
STEEL BALL CATCH

6 mm (1/4")

Depth = 8 mm
Width of case = 6mm
Width of ball = 3. 5mm
Width of shoulder = 8mm
Thickness of shoulder = . 5mm

Includes Brass keeper & 2 pins

6mm

BRASS

CODE - - 104-6B - - $ 3.75

BRASS BALL CATCH

6 mm (1/4")

Depth = 8 mm
Width of case = 6mm
Width of ball = 3. 5mm
Width of shoulder = 8mm
Thickness of shoulder = . 5mm

Includes Brass keeper & 2 pins

8mm

CODE - - 104-8S - - $ 3.75

BALL CATCH
GOLD ZINC (STEEL) CASING

8mm (5/16")

Depth = 10mm
Width of case = 8mm
Width of ball = 6mm
Width of shoulder = 10mm
Thickness of shoulder = . 5mm

Includes keeper & 2 pins

8mm

BRASS

CODE - - 104-8B - - $ 3.75

BRASS BALL CATCH

8mm (5/16")

Depth = 10mm
Width of case = 8mm
Width of ball = 6mm
Width of shoulder = 10mm
Thickness of shoulder = . 5mm

Includes keeper & 2 pins

10mm

BALL CATCH
GOLD ZINC (STEEL) CASING

CODE - - 104-10S - - $3.75

BALL CATCH
GOLD ZINC (STEEL) CASING

10mm (3/8")

Depth = 14mm
Width of case = 10mm
Width of ball = 7mm
Width of shoulder = 11mm
Thickness of shoulder = . 5mm

Includes gold zinc (steel) keeper & 2 pins

10mm

BRASS



CODE - - 104-10B - - $ 3.75

BRASS BALL CATCH
BRASS CASING

10mm (3/8")

Depth = 14mm
Width of case = 10mm
Width of ball = 7mm
Width of shoulder = 11mm
Thickness of shoulder = . 5mm

Includes Brass keeper & 2 pins

13mm
GOLD ZINC

CODE - - 104-13S - - $4.50

BALL CATCH
GOLD ZINC (STEEL) CASING

13mm (1/2")

Depth = 18mm
Width of case = 13mm
Width of ball = 11mm
Width of shoulder = 15mm
Thickness of shoulder = . 5mm

includes gold zinc (steel) keeper & 2 screws

13mm
BRASS

CODE - - 104-13B- - $4.50

BRASS BALL CATCH
BRASS CASING

13mm (1/2")

Depth = 18mm
Width of case = 13mm
Width of ball = 11mm
Width of shoulder = 15mm
Thickness of shoulder = . 5mm

Includes brass keeper & 2 screws

16mm

CODE - - 104-16S - - $ 4.50

BALL CATCH
GOLD ZINC (STEEL) CASING

16mm (5/8")

Depth = 20mm
Width of case = 16mm
Width of ball = 11mm
Width of shoulder = 19mm
Thickness of shoulder = . 5mm

Includes keeper & screws
