PLEASE EMAIL US WITH YOUR
ORDER OR ENQUIRY
bakeliteproducts@gmail.com

WE WILL RESPOND WITH A QUOTE
AND PROVIDE PAYMENT OPTIONS.
Please include your postcode and suburb
so that we can calculate postal costs.

6 inch

INTERNALS FLIPPED OVER
FOR INWARD OR OUTWARD OPENING DOORS

THIS LOCK CAN BE ON THE
RIGHT SIDE OR LEFT OF DOOR.

H&T VAUGHAN



INCLUDED IS THE
ORIGINAL STEEL KEY

RIGHT OR LEFT

BECAUSE OF THE
UNIQUE KEY SLOT THIS IS A
RIGHT OR LEFT SIDE LOCK

CODE- - LOCKS-FR- 302 = 195. 00

6 inch

FRONT DOOR LOCK



Made approx between 1875 and 1910.

From the inside the door knob is pulled sideways
to open the door.

From the outside the key unlocks the door.

MEDALLION SIZE = 28mm

IT HAS THIS TYPE VAUGHAN MEDALLION

WIDTH = 6" (178mm)
HEIGHT = 4 3/4" 120mm

Distance of keyhole to left edge = 79mm

Distance of centre round keyhole
to bottom edge = 60mm

FRONT DOOR LOCK
7 inch with SNIB

LEFT SIDE

CARPENTER



INCLUDED IS THE
ORIGINAL STEEL KEY





CODE- - LOCKS-FR-LH-7-301 = 375. 00

When the snib is in the up position
it will keep the tongue in whatever spot it is
so that it has to be moved down for the lock to operate.

Made approx between 1875 and 1910.

From the inside the door knob is pulled sideways
to open the door. From the outside the key unlocks
the door and when turned even more,
pulls in the tongue to open the door.
And so the key, from the outside, has the double
function of locking the door and opening it.

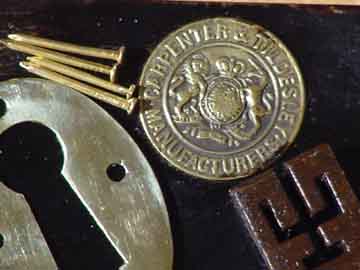

MEDALLION SIZE = 27mm

CARPENTER & TILDESLEY
MANUFACTURERS

WIDTH = 178mm
HEIGHT = 124mm

WIDTH = 176mm ( 7" )
HEIGHT = 123mm ( 4 3/4" )

Distance of keyhole to left edge = 79mm

Distance of centre round keyhole
to bottom edge = 42mm





FRONT DOOR LOCK
7 inch with SNIB

LEFT SIDE

CARPENTER



INCLUDED IS THE
BRASS KEY.







CODE- - LOCKS-FR-LH-7-304 = 375. 00

When the snib is in the up position
it will keep the tongue in whatever spot it is
so that it has to be moved down for the lock to operate.

Made approx between 1875 and 1910.

From the inside the door knob is pulled sideways
to open the door. From the outside the key unlocks
the door and when turned even more,
pulls in the tongue to open the door.
And so the key, from the outside, has the double
function of locking the door and opening it.

MEDALLION SIZE = 32mm

CARPENTER & TILDESLEY
MANUFACTURERS

WIDTH = 175mm
HEIGHT = 123mm

Distance of keyhole to left edge = 77mm

Distance of centre round keyhole
to bottom edge = 42mm









FRONT DOOR LOCK
7 inch with SNIB

LEFT SIDE

CARPENTER



INCLUDED IS THE
BRASS KEY.







CODE- - LOCKS-FR-LH-7-307 = 375. 00

When the snib is in the up position
it will keep the tongue in whatever spot it is
so that it has to be moved down for the lock to operate.

Made approx between 1875 and 1910.

From the inside the door knob is pulled sideways
to open the door. From the outside the key unlocks
the door and when turned even more,
pulls in the tongue to open the door.
And so the key, from the outside, has the double
function of locking the door and opening it.

MEDALLION SIZE = 27mm

CARPENTER & TILDESLEY
MANUFACTURERS

WIDTH = 175mm ( 7" )
HEIGHT = 122mm ( 4 3/4" )

Distance of keyhole to left edge = 77mm

Distance of centre round keyhole
to bottom edge = 42mm







LARGE

FRONT DOOR LOCK
9 inch with SNIB

LEFT SIDE

INCLUDED IS THE
ORIGINAL STEEL KEY

( kept in house )

CODE- - FR LOCK-LH-9 inch = 375.00

WITH ORIGINAL KEEPER
CODE- - FR LOCK 9 inch + KEEP = 425. 00

WIDTH = 9" ( 230mm )
HEIGHT = 5 1/2" ( 142mm )

Distance of keyhole to left edge = 100mm

Distance of centre round keyhole
to bottom edge = 43mm

When the snib is in the up position
it will keep the tongue in whatever spot it is
so that it has to be moved down for the lock to operate.

Made approx between 1875 and 1910.

From the inside the door knob is pulled sideways
to open the door. From the outside the key unlocks
the door and when turned even more,
pulls in the tongue to open the door.
And so the key, from the outside, has the double
function of locking the door and opening it.

MEDALLION SIZE = 32mm

CARPENTER & TILDESLEY
MANUFACTURERS

BEING RESTORED
BETTER PIC COMING

LARGE

FRONT DOOR LOCK
9 inch with SNIB

RIGHT SIDE

NO KEY

CODE- - FR LOCK-RH-9 inch = 275.00

WITH ORIGINAL KEEPER
CODE- - FR LOCK 9 inch + KEEP = 325. 00

WIDTH = 9" ( 230mm )
HEIGHT = 5 1/2" ( 142mm )

Distance of keyhole to right edge = 100mm

Distance of centre round keyhole
to bottom edge = 43mm

When the snib is in the up position
it will keep the tongue in whatever spot it is
so that it has to be moved down for the lock to operate.

Made approx between 1875 and 1910.

From the inside the door knob is pulled sideways
to open the door. From the outside the key unlocks
the door and when turned even more,
pulls in the tongue to open the door.
And so the key, from the outside, has the double
function of locking the door and opening it.

MEDALLION SIZE = 32mm

CARPENTER & TILDESLEY
MANUFACTURERS

A SMALL 4" LOCK



BY APPOINTMENT
HOBBS & Co
CHEAPSIDE
LONDON
LEVER
MACHINE MADE



MEDALLION SIZE
38mm - wide
28 mm - high



NO KEY

CODE- - LOCKS-FR-RH-306 = 120. 00



When the snib is in the up position
it will keep the tongue in whatever spot it is
so that it has to be moved down for the lock to operate.

Made approx between 1875 and 1910.

From the inside the door knob is pulled upwards
to open the door. From the outside the key unlocks
the door and when turned even more anti-clockwise,
pulls in the tongue to open the door.
And so the key, from the outside, has the double
function of locking the door and opening it.

WIDTH = 107mm ( 4 1/4"" )
HEIGHT = 85mm ( 3 3/8" )
Distance of keyhole to right edge = 48mm

Distance of centre round keyhole
to bottom edge = 23mm

FRONT DOOR LOCK
6 inch with SNIB

RIGHT SIDE



MEDALLION SIZE
26mm Diameter

ARTHUR SHAW & Co
LTD
REGD TRADE MARK
WILLENHALL

CODE- - LOCKS-FR-RH-305 = 125. 00







When the snib is in the up position
it will keep the tongue in whatever spot it is
so that it has to be moved down for the lock to operate.

Made approx between 1875 and 1910.

From the inside the door knob is pulled upwards
to open the door. From the outside the key unlocks
the door and when turned even more anti-clockwise,
pulls in the tongue to open the door.
And so the key, from the outside, has the double
function of locking the door and opening it.

WIDTH = 155mm ( 6" )
HEIGHT = 107mm ( 4 3/16" )
Distance of keyhole to right edge = 45mm

Distance of centre round keyhole
to bottom edge = 53mm

FRONT DOOR LOCK
6 inch with SNIB

RIGHT SIDE

THE RELIANCE
PATENT
No.28213



MEDALLION SIZE
35mm - wide
25 mm - high

CODE- - LOCKS-FR-RH-303 = 195. 00





When the snib is in the up position
it will keep the tongue in whatever spot it is
so that it has to be moved down for the lock to operate.

Made approx between 1875 and 1910.

From the inside the door knob is pulled upwards
to open the door. From the outside the key unlocks
the door and when turned even more anti-clockwise,
pulls in the tongue to open the door.
And so the key, from the outside, has the double
function of locking the door and opening it.

WIDTH = 155mm ( 6" )
HEIGHT = 105mm ( 4 1/8" )
Distance of keyhole to right edge = 50mm

Distance of centre round keyhole
to bottom edge = 53mm

OPENED BY PULLING LEVER
ON RIGHT SIDE AND BY TURNING
KEY ON OUTSIDE OF DOOR.

NO KEY

CAST IRON

CODE-LOCKS-FR-LH-300 = 120. 00

OLD CAST IRON
REFURBISHED

WIDTH = 144mm
HEIGHT = 90mm

Distance of keyhole to left edge = 65mm

Distance of centre round keyhole
to bottom edge = 44mm

RE
USA

We have 1 or 2 of these original
keepers to fit locks above & below.

KEEPER

CODE - - KEEPCAST-30 - 32. 50

ORIGINAL CAST IRON KEEPER

93mm ( 3-5/8") - - High
38 mm ( 1-1/2") - - Wide

Striker gap height = 66mm ( 2-5/8")
Striker gap depth = 20mm (139/16")
Hole centres = 50mm ( 2")

SIMILAR TO THE LOCK ABOVE

OPENED BY PULLING LEVER
ON RIGHT SIDE AND BY TURNING
KEY ON OUTSIDE OF DOOR.

NO KEY

CAST IRON

CODE-LOCKS-FR-LH-308 = 120. 00

OLD CAST IRON
REFURBISHED

WIDTH = 144mm
HEIGHT = 90mm

Distance of keyhole to left edge = 67mm

Distance of centre round keyhole
to bottom edge = 46mm

H & V

CODE - - CARPNIGHTLATCH220 - - 18. 50

76mm overall length
60mm length of shaft

PART FOR LOCKS

92mm ( 3-5/8") - - High - -CODE - - - KEEPFRN92

97mm ( 3-3/4") - - High - -CODE - - -KEEPFRN97

98mm ( 3-7/8") - - High - -CODE - - -KEEPFRN98

100mm ( 4") - - High - -CODE - - -KEEPFRN100

110mm ( 4-1/4") - - High - -CODE - - -KEEPFRN110 (pictured)

KEEPERS ( STRIKERS ) = $45

WORKS AS RIGHT & LEFT HAND SIDE

FOR SLIDE ACTION ( Carpenter, Vaughan etc. )
MAINLY FRONT DOOR LOCKS

120mm ( 4-3/4") - - High - - CODE- - - KEEPFRN120
130mm ( 5-1/8") - - High - - CODE- - - KEEPFRN130OUT OF STOCK
147mm ( 5-3/4") - - High - - CODE- - - KEEPFRN147OUT OF STOCK

KEEPERS ( STRIKERS ) = $ 65. 00

HAND CAST WITH DECORATIVE BRASS
BEING ATTACHED SEPARATELY AS ORIGINAL

WORKS AS RIGHT & LEFT HAND SIDE

FOR SLIDE LOCKS CARPENTER , VAUGHAN etc.
MAINLY FRONT DOOR LOCKS
