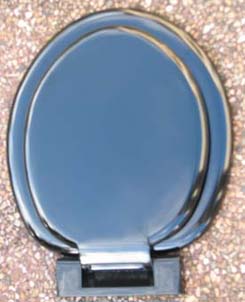

CODE - TOIL-BL-LID = 45. 00

INCLUDES 2 ROUND RUBBER BUTTON STOPS ON UNDERSIDE OF LID

Pack & Post AUSTRALIA WIDE = $ 22. 50



We do not have the attachments to fit this lid to your toilet. The lid is sold purely as a separate replacement item only, as pictured.
If you already have the Paramount P.M. MONK brand of toilet seat then you should be able to use your existing backing bolts or backflap to secure the replacement lid to your toilet seat.

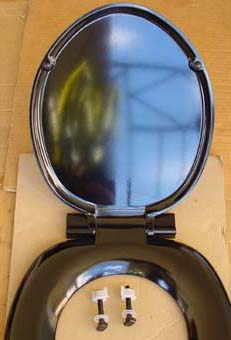

BLACK
BAKELITE TOILET RING
& LID DIMENSIONS

Because there are sliding tracks in the BASE PLATE
into which the bolt heads fit - - -
and the fact that the bolts are made offcentre to the bolt heads - - -
there is an array of adjustments to fit any number of pan hole variations.
AFTER SIMPLY SLOTTING THE HYGIENIC PLASTIC BOLTS INTO THE TRACKS
THE SEAT & LID ARE LOWERED ONTO THE PAN
AND SECURED WITH THE WINGNUTS SUPPLIED.

We think that BASE PLATE
has always been made in plastic
as there is no record of them ever being made in Bakelite.

The following measurements don't include the protrusions which are part of the lid and seat
making up the hinge through which the rod fits.

SEAT - 15-1/4" ( 390mm ) wide X 16-1/2" ( 420mm ) long

LID - - 12-1/2" ( 318mm ) wide X 15-1/4" ( 390mm ) long

SEAT HOLE - 8-1/2" ( 215mm ) wide X 10-1/4" ( 260mm ) long

***

The fixing bolts are ADJUSTABLE
to fit the holes in the top of your toilet

The fittings will fit in the toilet bowl if you measure between these holes of your toilet.

MINIMUM OF HOLES WIDTH CENTRE TO CENTRE IS = 135mm (5-1/4")
MAXIMUM OF HOLES WIDTH CENTRE TO CENTRE IS = 165mm (6-1/2")

***

CLEANING INSTRUCTIONS

Use only a mild solution of liquid detergent.
Use only a soft clean cloth.
Do NOT use any abrasive cleaners or pads.

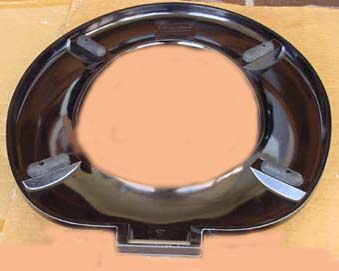

SEAT RING ONLY
NO BACKFLAP or FIXING BOLTS to secure to your toilet

WITH or WITHOUT RUBBER SEAT BUFFERS ON UNDERSIDE OF SEAT

READ BELOW:

You should be able to unscrew your existing seat buffers and swap them to the new seat ring
BUT if they are too far gone.... we have sourced some generic white buffers which we can modify and glue into position as described and pictured right, at no extra charge.

Outside measurement where shaft
goes through = 90mm ( 3- 9/16" )

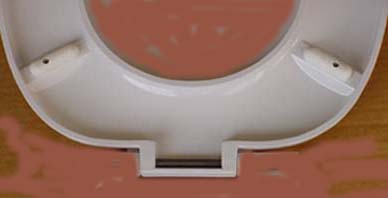

THIS SHOWS THE SEAT WITH NO WHITE RUBBER BUFFER STOPS ON THE UNDERSIDE.......
You should be able to unscrew your existing buffers and swap them to the new seat ring BUT if they are too far gone.... we have some generic white buffers which we can modify and glue into position as described and pictured right, at no extra charge.

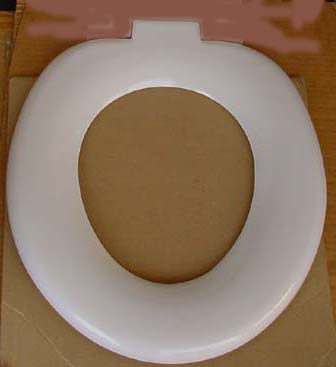

CODE - TOIL-WH-BASE $ 45. 00

SEAT RING ONLY
NO BACKFLAP or FIXING BOLTS to secure to your toilet

WITH or WITHOUT RUBBER SEAT BUFFERS ON UNDERSIDE OF SEAT

READ BELOW:



You should be able to unscrew your existing seat buffers and swap them to the new seat ring BUT if they are too far gone.... we have sourced some generic white buffers which we can modify and glue into position as pictured below, at no extra charge. We have to re-shape one end of each buffer and then glue into position as the bolt hole on the generic buffer does not line up with the bolt hole position on the Paramount seat ring.


WITH OUR MODIFIED RUBBER SEAT BUFFERS GLUED ON THE UNDERSIDE

Pack & Post AUSTRALIA WIDE = 22. 50

We do not have the attachments to fit the seat ring to your toilet. The seat ring is sold purely as a separate replacement item only.
If you already have the Paramount P.M. MONK brand of toilet seat then you should be able to use your existing backing bolts or backflap to secure the replacement seat to the toilet bowl.







CODE - TOIL-WH-LID
$ 45. 00

INCLUDES 2 ROUND RUBBER BUTTON STOPS ON UNDERSIDE

Pack & Post AUSTRALIA WIDE = $ 22. 50

We do not have the attachments to fit this lid to your toilet. The lid is sold purely as a separate replacement item only, as pictured.
If you already have the Paramount P.M. MONK brand of toilet seat then you should be able to use your existing backing bolts or backflap to secure the replacement lid to your toilet seat.

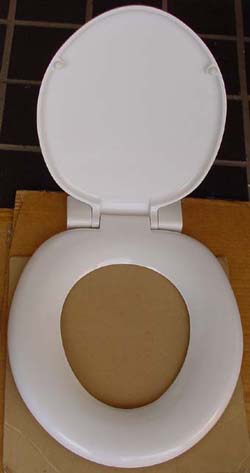

WHITE
BAKELITE TOILET SEAT & LID DIMENSIONS

Because there is adjustment in the BASE PLATE
into which the bolt heads fit - - -
and the fact that the bolts are made off centre to the bolt heads - - -
there is an array of adjustments to fit any number of pan hole variations.
AFTER SIMPLY SLOTTING THE HYGIENIC PLASTIC BOLTS INTO THE INSERTS
THE SEAT & LID ARE LOWERED ONTO THE PAN
AND SECURED WITH THE WINGNUTS SUPPLIED
.
The BASE PLATE has always been made in plastic
as there is no record of it ever being made in Bakelite.

The following measurements don't include the protrusions which are part of the lid and seat
making up the hinge through which the rod fits.

SEAT - 15-1/4" ( 390mm ) wide X 16-1/2" ( 420mm ) long

LID - - 12-1/2" ( 318mm ) wide X 15-1/4" ( 390mm ) long

SEAT HOLE - 8-1/2" ( 215mm ) wide X 10-1/4" ( 260mm ) long

***

The fixing bolts are ADJUSTABLE
to fit the holes in the top of your toilet

The fittings will fit in the toilet bowl if you measure between these holes of your toilet.

MINIMUM OF HOLES WIDTH CENTRE TO CENTRE IS = 135mm (5-1/4")
MAXIMUM OF HOLES WIDTH CENTRE TO CENTRE IS = 165mm (6-1/2")

***

CLEANING INSTRUCTIONS

Use only a mild solution of liquid detergent.
Use only a soft clean cloth.
Do NOT use any abrasive cleaners or pads.



*
