SPECKLED BAKELITE SWITCH

speckled-bakelite-switch

BACK TO ART DECO S/W RECEPTACLES - - - CLICK

***
www. bakelite switch.com www. bakelite fittings.com www.bakeliteproducts.com www.bakelite.com.au
WWW.AUTHENTICLIGHTINGANDHARDWARE.COM

speckled bakelite switch

AUSTRALIA - - UK.

SWITCHPLATE COVERS

SWITCHES - POWER POINTS - DIMMERS

SHOP HOURS

CLOSED MONDAYS

Tue-Fri 8.30 - 5 , Sat 8.00 - 1

ABN 65471380292

63 Windsor Rd, Red Hill,
Brisbane, Queensland 4059, Australia

email & paypal :- bakelite@bigpond.com
Phone 07- 33683220 Fax. 07- 33682332

International :- Phone 61 -7- 33683220 Fax. 61-7- 33682332

SENDING WORLDWIDE SAME DAY or NEXT
Majority Small Overseas Airmail parcels between US $10.50 - US $16.50
Probable arrival time 4 - 7 Days

Australia wide :- small postbag $5.50 --- large $9.60
Registered add $2.75

WILL LEAVE SAME DAY OR NEXT
We can give a quote on parcel if desired once your address is known
We are close to Red Hill Post Office

***

For ordering
email bakelite@bigpond.com

Paypal, Direct Deposit, Cheque, Money order, Cash.
Visa or Mastercard over the phone or by email.
MAKE PAYMENT OPTIONS BELOW
AND GIVE ADDRESS DETAILS
***
PAYPAL EMAIL IS bakelite@bigpond.com

***

Direct Deposit bank details are :-

OVERSEAS SWIFT NUMBER - - BENDAU3B
Bendigo bank Ascot, Brisbane
BSB :- 633 000 Acct. no :- 1 2 6 1 8 4 8 2 9
JGH Paas. J Barlow- Paas

***

Visa or Mastercard over the phone or by email.
Send Numbers
then expiry date ( over a few emails )
then last 3 numbers on back of card

***

CLICK THIS FOR CURRENCY CONVERTER - - www.xe.com.html OR www.oanda.com

all sizes & combinations are available in
SPECKLED BAKELITE

SWITCH PLATE COVERS BELOW.

sustitute SPECKLE BLUE correct pic coming	CODE - M20SPC - AU$ 10. 85 SINGLE BROWN SWITCH PLATE COVER ( standard dirnsions ) 4-3/8" ( 111mm ) High 2-5/8" ( 68mm ) Wide The holes are 2-5/16" ( 60mm ) apart They are the normal thickness - - - 5/16" ( 4mm )



sustitute SPECKLE BLUE correct pic coming	CODE - M21SPC - AU$ 13. 95 2 GANG ( double ) BROWN SWITCH PLATE COVER ( standard dirnsions ) 4-3/8" ( 111mm ) High 4-5/16" ( 110mm ) Wide In height holes are 2-5/16" ( 60mm ) apart In width holes are 1-13/16" ( 47mm ) apart They are the normal thickness - - - 5/16" ( 4mm )



sustitute SPECKLE BLUE correct pic coming	CODE - M22SPC - - AU$ 14. 70 3 GANG ( triple ) BROWN SWITCH PLATE COVER ( standard dirnsions ) 4-5/16" ( 110mm ) High 6-1/4" ( 158mm ) Wide In height holes are 2-5/16" ( 60mm ) apart In width holes are 1-13/16" ( 47mm ) apart They are the normal thickness - - - 5/16" ( 4mm ) COLORS CAN APPEAR DIFFERENT BUT IT IS ONLY THE VARIATION IN PHOTOGRAPHY LIGHTING

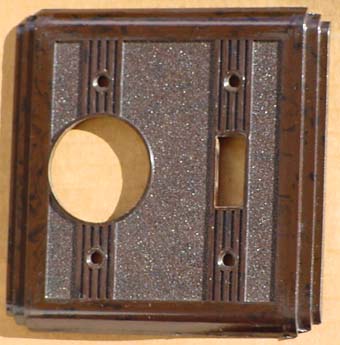

sustitute SPECKLE BLUE correct pic coming	CODE - M25SPC - - AU$ 13. 95 BROWN RECEPTACLE COVER ( standard dirnsions ) 4-5/16" ( 110mm ) High 4-3/8" ( 112mm ) Wide They are the normal thickness - - - 5/16" ( 4mm ) In height holes are 2-5/16" ( 60mm ) apart In width holes are 1-13/16" ( 47mm ) apart

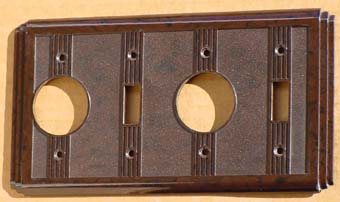

sustitute SPECKLE BLUE correct pic coming	CODE - M26SPC - - AU$ 15. 50 BROWN DOUBLE RECEPTACLE COVER ( standard dirnsions ) 4-5/16" ( 110mm ) High 8-1/16" ( 210mm ) Wide In height holes are 2-5/16" ( 60mm ) apart In width holes are 1-13/16" ( 47mm ) apart They are the normal thickness - - - 5/16" ( 4mm )

***

Has 4 Terminals as Brown above Better pic coming	WHITE CODE - - DECOSWMECHWHBAK - AU$ 15. 60 Works as 1 or 2 way meaning that 2 of these switches can be at different locations to switch the same light.

	CODE - - DECODIMMECHBR - AU$ 50.80 CODE - - DECODIMMECH-UNIBR - AU$ 70.10 (UNIVERSAL) DIMMER MECHANISM WHICH FITS DECO PLATE

WHITE CORRECT PIC COMING	WHITE CORRECT PIC COMING CODE - - DECOSOCKMECHWH - AU$ 13. 20

***

WAYS OF FIXING SWITCHES & POWER POINTS

BELOW

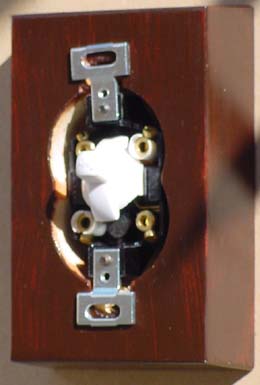

	WOODBLOCKS FOR MOUNTING DECO SWITCHES & RECEPTACLES With screws close to the inner edges so that the plates cover these wood screws the block is fixed to the wall. The switces or reeceptacles are then wired up and screwed onto the block with the aid of the paper template shown below. The cover plate is then screwed on with screws supplied CODE - - DEBLOCK1 - - 1 GANG - - AU$ 13. 60 CODE - - DEBLOCK2 - - 2GANG - - AU$ 15. 60 CODE - - DEBLOCK3 - - 3GANG - - AU$ 16. 60 CODE - - DEBLOCK4 - - 4GANG - - AU$ 17. 60



	FOR EASE OF MOUNTING TO EXISTING WALLS The strip is inserted through thr hole snd glued to the back of the wall cladding ( eg. plaster ). The toggle switches or receptacles are then fixed with the bolt going through the wall cladding and screwing to the plate behind. CODE - - DESTR1P1 - - 1 GANG - - AU$ 3. 90 CODE - - DESTR1P2 - - 2GANG - - AU$ 5. 00 CODE - - DESTR1P3 - - 3GANG - - AU$ 8. 25 CODE - - DESTR1P4 - - 4GANG - - AU$ 11. 25




	FOR EASE OF MOUNTING, A PAPER DIAGRAM TRUE TO SIZE of all the sizes CAN BE INCLUDED WITH ORDER Two horizontal pieces of timber 2-7/8" (74mm) apart are inserted between two vertical wall studs before the wall cladding is put on. A pointy scriber is pushed through the crosses of the diagram to enable the toggle switches or receptacles to be screwed down. The cover plate is then fixed with supplied screws to the toggle switches or receptacles.




	DECO WALL BOXES These wall boxes are the easiest way of installing the Deco Switch Range if the wall cladding hasn't yet been put on. They can be srewed or nailed to wall studs or are ideal for brick or concrete walls. CODE - - DEBOX1 - - 1 GANG - - AU$ 6. 50 CODE - - DEBOX2 - - 2GANG - - AU$ 13. 50 CODE - - DEBOX3 - - 3GANG - - AU$ 22. 50 CODE - - DEBOX4 - - 4GANG - - AU$ 29. 80

***

THESE ARE STANDARD SIZES COMMON TO ALL SWITCHPLATES

The distance of the outer mechanism securing holes top & bottom = 3-1/4" (85mm)

The plates are only a cover and screw onto the mechanisms with screws provided (silver or bronze).

The distance of these holes in the plates top & bottom = 2-3/8" (60mm)

***

SINGLE SWITCHES WITH CHOICE OF TOGGLES
BELOW




sustitute SPECKLE BLUE correct pic coming CODE - M20BLUW - -AU$ 26.65 SINGLE SPECKLE BLUE SWITCH WHITE BAKELITE TOGGLE SWITCH		DECO BLOCK WITHOUT SWITCH CODE - - DEBLOCK1 - AU$ 13. 60

***

DOUBLE SWITCHES WITH CHOICE OF TOGGLES
BELOW

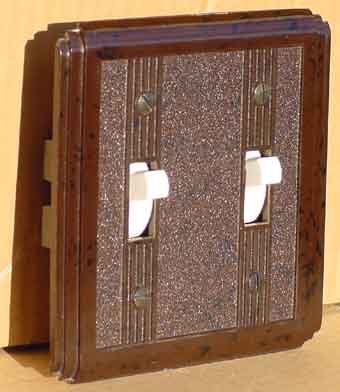

sustitute SPECKLE BLUE correct pic coming CODE - - M21BLUW - AU$ 42.60 DOUBLE ( 2gang ) SPECKLE BLUE SWITCH WHITE BAKELITE TOGGLE SWITCHES		DECO WALL BOX WITHOUT SWITCHES CODE - - DEBOX2 - AU$ 13. 50

***

sustitute SPECKLE BLUE correct pic coming		CODE - - M21BRSW+DIMMER - AU$ 96.90 SPECKLE BLUE SWITCH + DIMMER

***

TRIPLE SWITCHES BELOW

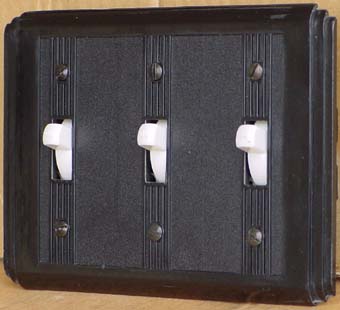

sustitute SPECKLE BLUE correct pic coming CODE - - M22BLUW - AU$ 59.65 TRIPLE ( 3 gang ) SPECKLE BLUE SWITCH WHITE BAKELITE TOGGLE SWITCHES COLOURS MAY APPEAR DIFFERENT BUT IT IS ONLY THE VARIATION IN PHOTOGRAPHY LIGHTING	**	DECO WALL BOX WITHOUT SWITCHES CODE - DEBOX3 - AU$ 22. 50

***

SPECKLE BLUE

SINGLE POWER POINTS BELOW





sustitute SPECKLE BLUE correct pic coming CODE - M25BLUW - AU$ 40.45 SPECKLE BLUE POWER POINT * WHITE SOCKET * WHITE BAKELITE TOGGLE SWITCH	**	includes white bakelite sw & socket

***

SPECKLE BLUE

DOUBLE POWER POINTS BELOW

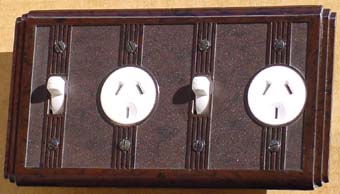

sustitute SPECKLE BLUE correct pic coming CODE - - M26BLUW - - AU$ 70.30 DOUBLE SPECKLE BLUE POWER POINT * WHITE SOCKETS * WHITE BAKELITE TOGGLE SWITCHES	**	white bakelite sw & socket

***
