RED

SWITCHPLATE COVERS

SWITCHES - POWER POINTS


all sizes & combinations now available in red

THE SINGLE PLATE ABOVE IS A

GOOD SAMPLE OF THE COLOUR OF ALL RED

COLOURS CAN APPEAR DIFFERENT
BUT IT IS ONLY THE VARIATION IN
PHOTOGRAPHY LIGHTING

SWITCH PLATE COVERS BELOW

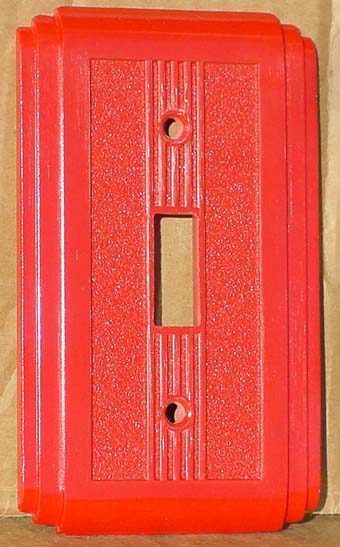

ITEM No. - - M20RC - - AU$ 9. 35


SINGLE RED

BAKELITE
SWITCH PLATE COVER

( standard dirnsions )

4-3/8" ( 111mm ) High

2-5/8" ( 68mm ) Wide

The holes are 2-5/16" ( 60mm ) apart

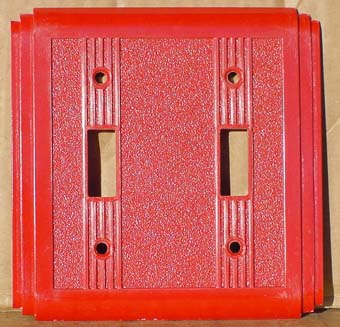

ITEM No. - - M21RC - - AU$ 12. 00


2 GANG ( double )

RED BAKELITE

SWITCH PLATE COVER

( standard dirnsions )

4-3/8" ( 111mm ) High

4-5/16" ( 110mm ) Wide

In height holes are 2-5/16" ( 60mm ) apart

In width holes are 1-13/16" ( 47mm ) apart

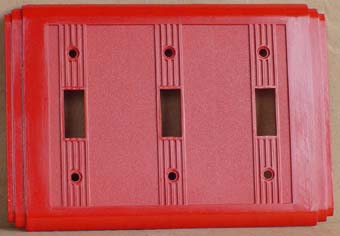

ITEM No. - - M22RC - - AU$ 12. 70


3 GANG ( double )

RED BAKELITE

SWITCH PLATE COVER

( standard dirnsions )

4-5/16" ( 110mm ) High

6-1/4" ( 158mm ) Wide

In height holes are 2-5/16" ( 60mm ) apart

In width holes are 1-13/16" ( 47mm ) apart

ITEM No. - - M25RC - - AU$ 12. 00

RED SINGLE

RECEPTACLE COVER



( standard dirnsions )

4-5/16" ( 110mm ) High

4-3/8" ( 112mm ) Wide

In height holes are 2-5/16" ( 60mm ) apart

In width holes are 1-13/16" ( 47mm ) apart



RED PLATE

correct picture coming

ITEM No. - - M26RC - - AU$ 13. 40


RED DOUBLE

RECEPTACLE COVER

( standard dirnsions )

4-5/16" ( 110mm ) High

8-1/16" ( 210mm ) Wide

In height holes are 2-5/16" ( 60mm ) apart

In width holes are 1-13/16" ( 47mm ) apart


***

WAYS OF FIXING SWITCHES & POWER POINTS

BELOW

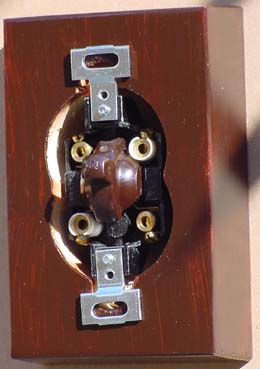

WOODBLOCKS FOR MOUNTING DECO
SWITCHES & RECEPTACLES

With screws close to the inner edges so that the plates cover these wood screws the block is fixed to the wall.
The switces or reeceptacles are then wired up and
screwed onto the block with the aid of the paper template shown below.
The cover plate is then screwed on with screws supplied

ITEM NO - - DEBLOCK1 - - 1 GANG - - AU$ 13. 60
ITEM NO - - DEBLOCK2 - - 2GANG - - AU$ 15. 60
ITEM NO - - DEBLOCK3 - - 3GANG - - AU$ 16. 60
ITEM NO - - DEBLOCK4 - - 4GANG - - AU$ 17. 60

FOR EASE OF MOUNTING
TO EXISTING WALLS

The strip is inserted through thr hole snd glued
to the back of the wall cladding ( eg. plaster ).
The toggle switches or receptacles are then fixed
with the bolt going through the wall cladding
and screwing to the plate behind.

ITEM NO - - DESTR1P1 - - 1 GANG - - AU$
ITEM NO - - DESTR1P2 - - 2GANG - - AU$
ITEM NO - - DESTR1P3 - - 3GANG - - AU$
ITEM NO - - DESTR1P4 - - 4GANG - - AU$

FOR EASE OF MOUNTING, A PAPER DIAGRAM TRUE TO SIZE
CAN BE INCLUDED WITH ORDER

Two horizontal pieces of timber 2-7/8" (74mm)
apart are inserted between two vertical
wall studs before the wall cladding is put on.
A pointy scriber is pushed through the crosses of the diagram to enable the toggle switches or receptacles to be screwed down.
The cover plate is then fixed with supplied
screws to the toggle switches or receptacles.

DECO WALL BOXES

These wall boxes are the easiest way of
installing the Deco Switch Range if the wall cladding hasn't yet been put on.
They can be srewed or nailed to wall studs
or are ideal for brick or concrete walls.

ITEM NO - - DEBOX1 - - 1 GANG - - AU$ 4. 90
ITEM NO - - DEBOX2 - - 2GANG - - AU$ 11. 40
ITEM NO - - DEBOX3 - - 3GANG - - AU$ 17. 50
ITEM NO - - DEBOX4 - - 4GANG - - AU$ 25. 25

***

SINGLE SWITCHES WITH CHOICE OF TOGGLES
BELOW

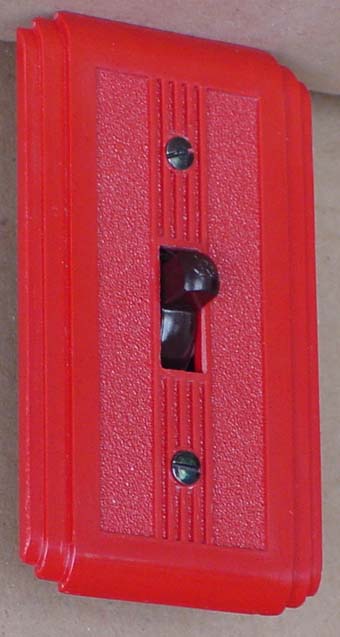

CODE - M20R - AU$ 24. 00

SINGLE RED

SWITCH

BROWN BAKELITE
TOGGLE SWITCH

( standard dirnsions )





DECO BLOCK

CODE - - DEBLOCK1 - AU$ 13. 60

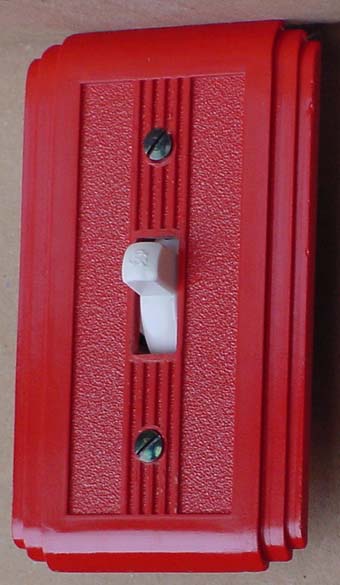

ITEM No. - M20RW

AU$ 24. 00

SINGLE RED

SWITCH

WHITE BAKELITE
TOGGLE SWITCH

( standard dirnsions )
**



DECO BLOCK

CODE - - DEBLOCK1 - AU$ 13. 60


***

DOUBLE SWITCHES WITH CHOICE OF TOGGLES
BELOW

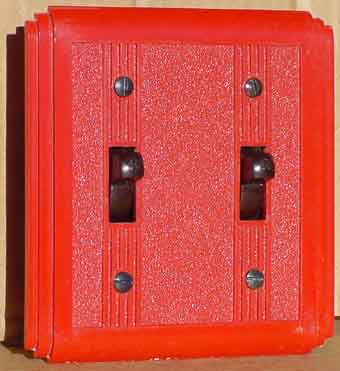

ITEM No. - M21R - AU$ 37.85

DOUBLE ( 2gang )

RED SWITCH

BROWN BAKELITE
TOGGLE SWITCHES

( standard dirnsions )

**



DECO BLOCK

CODE - - DEBLOCK2 - AU$ 15. 60

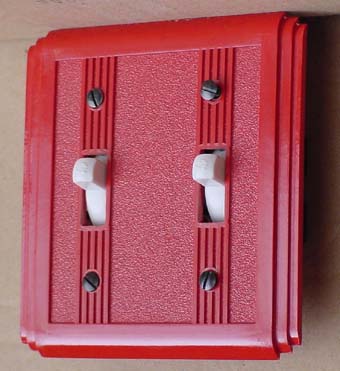

ITEM No. - M21RW - AU$ 37.85

DOUBLE ( 2gang )

RED SWITCH

WHITE BAKELITE
TOGGLE SWITCHES

( standard dirnsions )

DECO BOX
without switches
CODE - - DEBOX2 - US$ 11. 40

***

TRIPLE SWITCHES BELOW

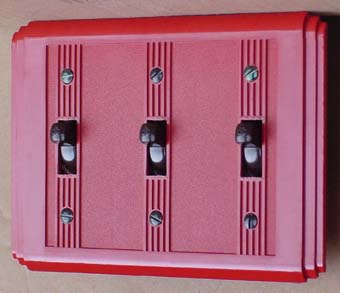

ITEM No. - M22R - AU$ 37. 85

TRIPLE ( 3 gang )

RED SWITCH

BROWN BAKELITE
TOGGLE SWITCHES

( standard dirnsions )



DECO BLOCK
without switches
CODE - DEBLOCK3 - AU$ 16. 60

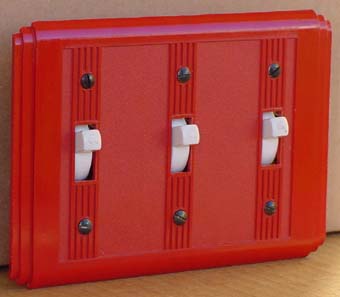

CODE - M22RW - AU$ 37.85

TRIPLE ( 3 gang )

RED SWITCH


WHITE BAKELITE
TOGGLE SWITCHES

( standard dirnsions )
**



DECO BOX
without switches
CODE - DEBOX3 - AU$ 17. 50


***

SINGLE POWER POINTS BELOW

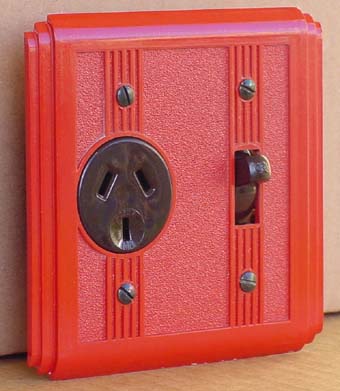

CODE - - M25R - AU$ 36. 00

RED
POWER POINT

* BROWN SOCKET

* BROWN BAKELITE
TOGGLE SWITCH

( standard dirnsions )

DECO BLOCK
without sw& sockets
CODE - DEBLOCK2 -- AU$ 15. 60


DECO BOX
without switch & receptacle
CODE - - DEBOX2 - US$ 11. 40

CODE - M25RW - AU$ 36. 00

RED
POWER POINT

* WHITE SOCKET

* WHITE BAKELITE
TOGGLE SWITCH

( standard dirnsions )

correct picture coming

**

includes
white
bakelite
sw & socket

***

DOUBLE POWER POINTS BELOW



SUBSTITUTE FOR RED

CODE - M26R - AU$ 62. 90

RED

POWER POINT
+
SWITCH

* BROWN SOCKETS

* BROWN BAKELITE
TOGGLE SWITCHE



DECO WALL BOX
without sw& sockets
CODE - - DEBOX4 - - AU$ 25. 25



DECO BLOCK
without sw& sockets
CODE - DEBLOCK4 -- AU$ 17. 60



SUBSTITUTE FOR RED

CODE - - M26RW - AU$ 62. 90

DOUBLE
RED
POWER POINT

* WHITE SOCKETS

* WHITE BAKELITE
TOGGLE SWITCHES

correct picture coming

**


white
bakelite
sw & socket





Just to confuse the reader more - - -

THE TOGGLE SWITCH ITSELF, SHOWN ABOVE ON THE SINGLE SWITCHPLATE
IS MORE MODERN AND PASSES ALL THE SAFETY STANDARDS
AS DO ALL THE OTHERS SWITCHES, SOCKETS ETC.

THIS TYPE OF TOGGLE SWITCH IN ALL COLOURS CAN BE A SUBSTITUTE FOR THE
OLDER STYLE SWITCHES SHOWN ON THE DIFFERENT PAGES.

TO ORDER THIS TYPE OF TOGGLE
JUST STATE THAT A "MODERN" TOGGLE IS REQUIRED & THE COLOUR.

COLOURS ARE :- WHITE - IVORY - BROWN - BLACK - GREY

***
