ITEM No. - - M20BLC - - AU$ 9. 85

SINGLE

BLACK BAKELITE
SWITCH PLATE COVER

( standard dirnsions )

ITEM No. - - M21BLC - - AU$ 9. 85

2 GANG ( double )

BLACK BAKELITE
SWITCH PLATE COVER

( standard dirnsions )

ITEM No. - - M22BLC - - AU$ 9. 85

3 GANG ( double )

BLACK BAKELITE
SWITCH PLATE COVER

( standard dirnsions )

WOODBLOCKS FOR MOUNTING DECO
SWITCHES & RECEPTACLES

With screws close to the inner edges so that the plates cover these wood screws the block is fixed to the wall.
The switces or reeceptacles are then wired up and
screwed onto the block with the aid of the paper template shown below.
The cover plate is then screwed on with screws supplied

ITEM NO - - DEBLOCK1 - - 1 GANG - - AU$ 13. 60
ITEM NO - - DEBLOCK2 - - 2GANG - - AU$ 15. 60
ITEM NO - - DEBLOCK3 - - 3GANG - - AU$ 16. 60
ITEM NO - - DEBLOCK4 - - 4GANG - - AU$ 17. 60

FOR EASE OF MOUNTING
TO EXISTING WALLS

The strip is inserted through thr hole snd glued
to the back of the wall cladding ( eg. plaster ).
The toggle switches or receptacles are then fixed
with the bolt going through the wall cladding
and screwing to the plate behind.

ITEM NO - - DESTR1P1 - - 1 GANG - - AU$
ITEM NO - - DESTR1P2 - - 2GANG - - AU$
ITEM NO - - DESTR1P3 - - 3GANG - - AU$
ITEM NO - - DESTR1P4 - - 4GANG - - AU$

FOR EASE OF MOUNTING, A PAPER DIAGRAM TRUE TO SIZE
CAN BE INCLUDED WITH ORDER

Two horizontal pieces of timber 2-7/8" (74mm)
apart are inserted between two vertical
wall studs before the wall cladding is put on.
A pointy scriber is pushed through the crosses of the diagram to enable the toggle switches or receptacles to be screwed down.
The cover plate is then fixed with supplied
screws to the toggle switches or receptacles.

DECO WALL BOXES

These wall boxes are the easiest way of
installing the Deco Switch Range if the wall cladding hasn't yet been put on.
They can be srewed or nailed to wall studs
or are ideal for brick or concrete walls.

ITEM NO - - DEBOX1 - - 1 GANG - - AU$ 4. 90
ITEM NO - - DEBOX2 - - 2GANG - - AU$ 11. 40
ITEM NO - - DEBOX3 - - 3GANG - - AU$ 17. 50
ITEM NO - - DEBOX4 - - 4GANG - - AU$ 25. 25

BROWN BAKELITE
TOGGLE SWITCH

ITEM No. - M20BL

AU$ 24. 00

SINGLE
BLACK SWITCH

BROWN BAKELITE
TOGGLE SWITCH

( standard dirnsions )

WHITE BAKELITE
TOGGLE SWITCH

correct picture coming

ITEM No. - M20BLW

AU$ 24. 00

SINGLE
BLACK SWITCH

WHITE BAKELITE
TOGGLE SWITCH

( standard dirnsions )

ITEM No. - - M21BLW

AU$ 37.85

DOUBLE ( 2gang )
BLACK SWITCH

WHITE BAKELITE
TOGGLE SWITCHES

( standard dirnsions )

BROWN
BAKELITE
TOGGLE SWITCHES

correct picture coming

ITEM No. - - M21BL

AU$ 37.85

TRIPLE ( 3 gang )
BLACK SWITCH

BROWN BAKELITE
TOGGLE SWITCHES

( standard dirnsions )

WHITE

BAKELITE
TOGGLE SWITCHES

correct picture coming

ITEM No. - - M22BLW

AU$ 37.85

TRIPLE ( 3 gang )
BLACK SWITCH

WHITE BAKELITE
TOGGLE SWITCHES

( standard dirnsions )

BROWN
SWITCHES
&
SOCKETS

ITEM No. - - M25BL - - US$ 36. 00

BLACK
POWER POINT

* BROWN SOCKET

* BROWN BAKELITE
TOGGLE SWITCH

( standard dirnsions )

WHITE
SWITCHES
&
SOCKETS

ITEM No. - - M25BLW - - US$ 36. 00

BLACK
POWER POINT

* WHITE SOCKET

* WHITE BAKELITE
TOGGLE SWITCH

( standard dirnsions )

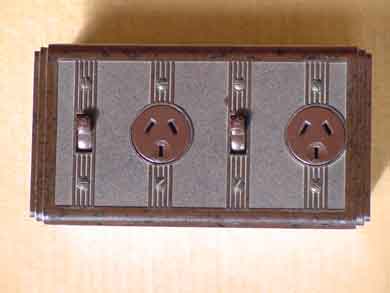

ITEM No. - - M26BL
AU$ 62. 90

BLACK

POWER POINT
+
SWITCH

* BROWN SOCKETS

* BROWN BAKELITE
TOGGLE SWITCHES

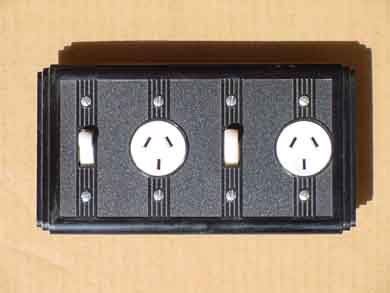

ITEM No. - - M26BLW
AU$ 62. 90

DOUBLE BLACK
POWER POINT

* WHITE SOCKETS

* WHITE BAKELITE
TOGGLE SWITCHES
